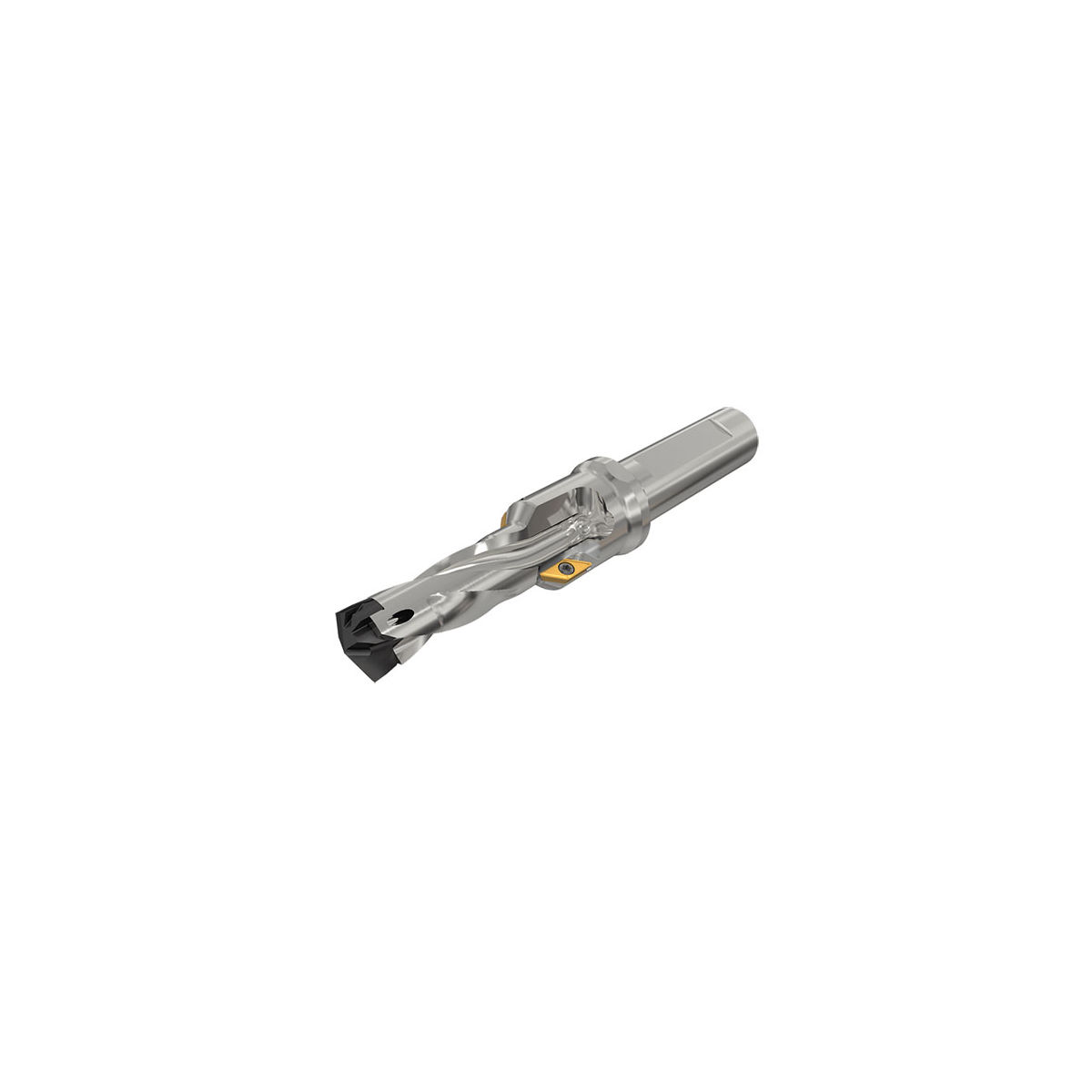

DCNT099-027-12.7-7/16UNF Drill Body with Exchangeable Heads, Chamfering Inserts, Internal Coolant and One Flat Shank. Used for Pre-Tread Holes.
Article no.: 2058648
Catalog no.: L24040 183
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Series | PRE-THREAD | |
| Type of product | Indexable drill |
Identification & Classification
| Article number | 2058648 | |
| Catalog number | L24040 183 | |
| EAN / GTIN | 7291075379938 | |
| Manufacturer number | 3203901 |
Description
Description:
Inserted Drill Bodies ,Connection Diameter Machine Side (DCONMS) 1/2″ ,Cutting Diameter (DC) 0.39″ ,Insert Seat Size Code (SSC) 9.0 ,Overall Length (OAL) 2.066″
Feature:
- Connection Diameter Machine Side (DCONMS): 1/2″
- Coolant Supply Property (CSP): Coolant Thru
- Cutting Diameter (DC): 0.39″
- Cutting Diameter 2 (DC_2): 0.65″
- Cutting Diameter Maximum (DCX): 0.39″
- Cutting Diameter Minimum (DCN): 0.374″
- Decimal Equivalent: 0.39″
- Flange Diameter (DF): 0.709″
- Insert Seat Size Code (SSC): 9.0
- Overall Length (OAL): 2.066″
- Point Length (PL): 0.06″
- Shank Diameter Tolerance (TCDMM): h6
- Shank Length (LS): 1.77″
- Step Diameter Length (SDL): 1.06″
