Solid carbide reamers HPC blind hole, Diamond, Nominal ⌀ DC: 20mm
Article no.: 501510
Catalog no.: 164357
Article code:
- Tool material: Solid carbide
- Standard: Manufacturer’s standard
- Type: W
- Through-coolant: yes, with 25 bar
- Shank: DIN 6535 HA with h6
Product details
Technical Data
| Nominal ⌀ DC | 20 mm | |
| Coating | Diamond | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | W | |
| Through-coolant | yes, with 25 bar | |
| Shank | DIN 6535 HA with h6 | |
| Machining strategy | HPC | |
| Application for type of drilling | for blind holes | |
| ⌀ range | 19.210 mm - 20.200 mm | |

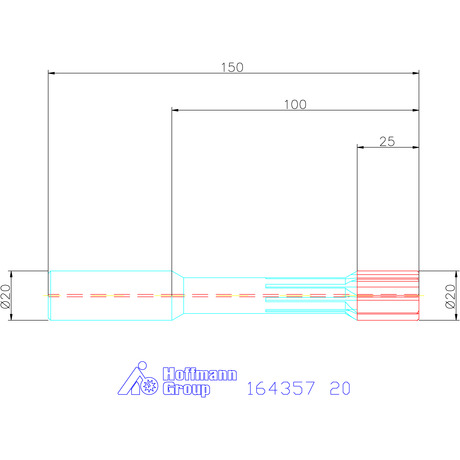

| Flute length Lc | 25 mm | |
| Overhang L1 | 95 mm | |
| Overall length L | 150 mm | |
| Number of cutting edges Z | 6 | |
| Shank ⌀ Ds | 20 mm | |
| Feed f in PEEK CF30 | 2 mm/rev. | |
| Feed f in GRP CRP | 1.6 mm/rev. | |
| Reaming oversize in diameter | 0.2 mm | |
| Shank tolerance | h6 | |
| Colour ring | black | |
| Configurable tolerances | A; B; C; CD; D; E; EF; F; FG; G; H; I; J; JS; O; L; M; N; O; P; Q; R; S; T; U; V; W; X; ZC; Z; ZA; ZB; ZC | |
| Configurable qualities | 6; 7; 8; 9; 10; 11; 12; 13 | |
| Type of product | Phillips bit |
Identification & Classification
| Article number | 501510 | |
| Catalog number | 164357 | |
| EAN / GTIN | 4045197513991 | |
| Manufacturer number | 164357 20 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Application Table
N
40
N
40
N
40
N
50
N
30
N
60
N
55
N
60
N
100
N
100
N
90
N
100
N
100
N
N
Description
Version:
With the latest generation of crystalline diamond coating sp3, for process reliability in machining fibre-reinforced composites, CRP, GRP, and graphite.
Version suitable for NC with straight shank ⌀ for standard arbors especially in hydraulic chucks or high precision collet chucks. This gives very high concentricity and process reliability. No need to procure special collets. With internal coolant supply for HPC applications to reduce manufacturing costs.
Reamers finish ground to match your specifications.
With short, straight flutes.
Version suitable for NC with straight shank ⌀ for standard arbors especially in hydraulic chucks or high precision collet chucks. This gives very high concentricity and process reliability. No need to procure special collets. With internal coolant supply for HPC applications to reduce manufacturing costs.
Reamers finish ground to match your specifications.
With short, straight flutes.
Application:
For HPC/HSC reaming of blind holes.
