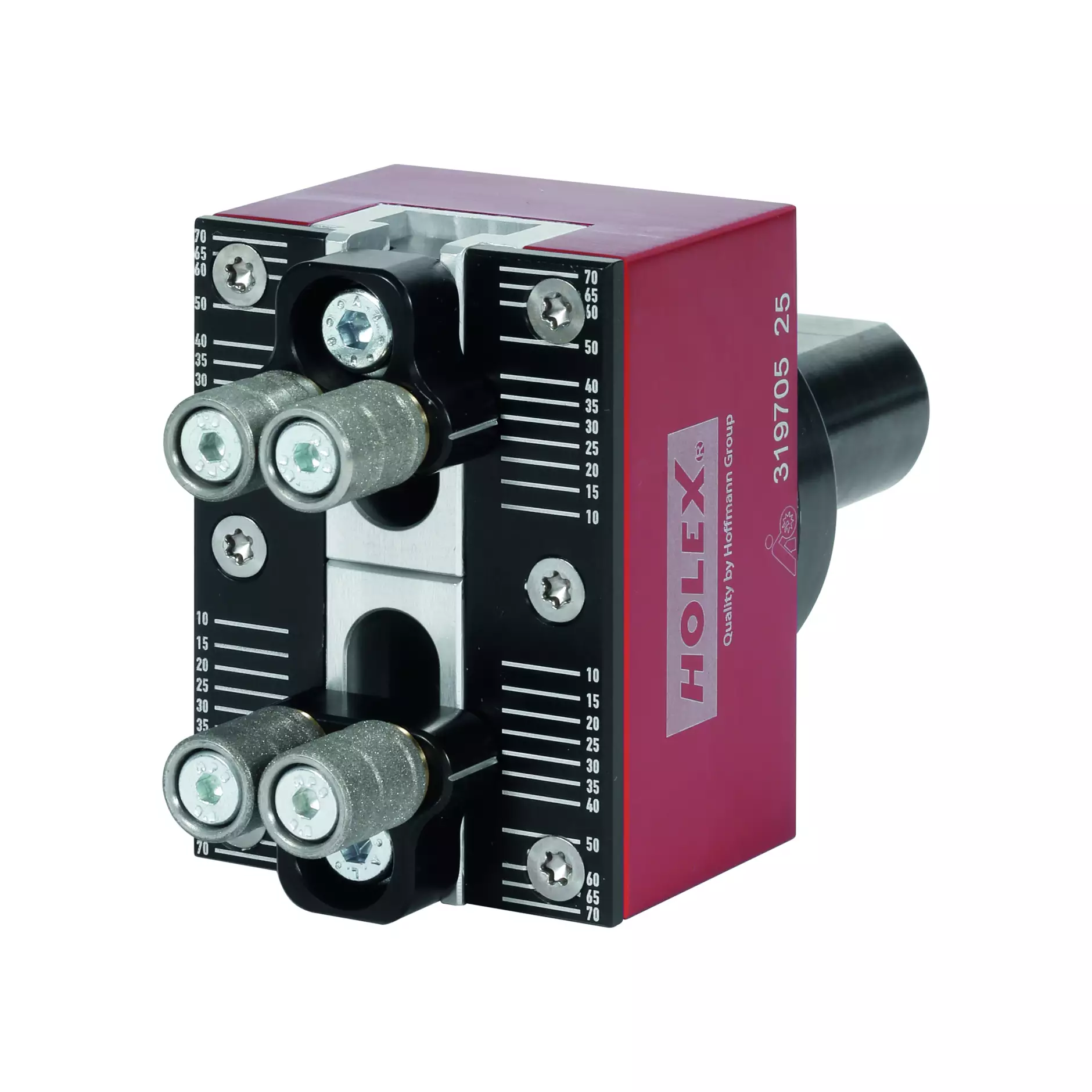

Bar holder, Shank ⌀ d1: 25mm
Article no.: 566780
Catalog no.: 319705
Article code:
Product details
Technical Data

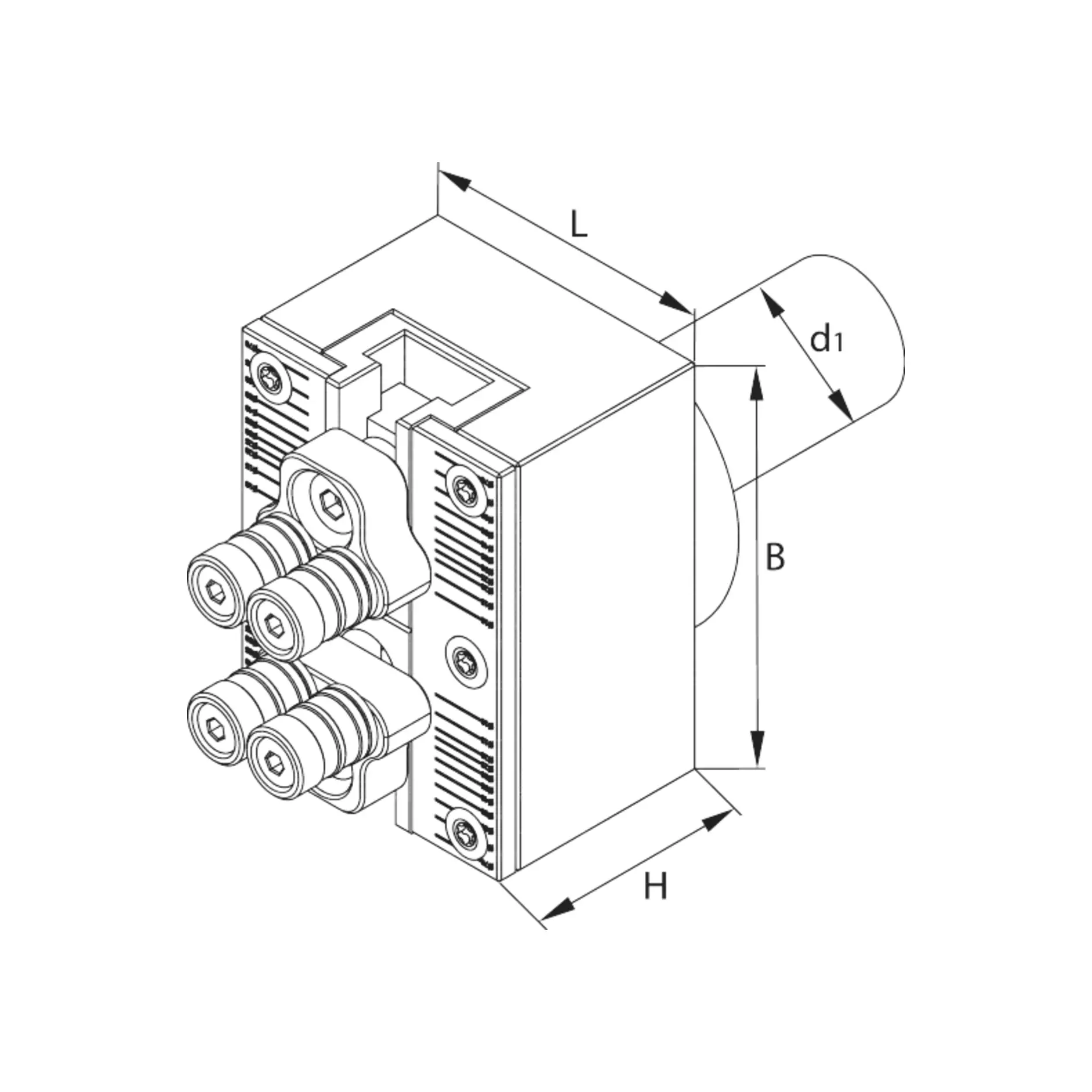

| Shank ⌀ D1 | 25 mm | |
| Length | 55 mm | |
| Width | 75 mm | |
| Height | 42 mm | |
| Type of product | Bar holder |
Identification & Classification
| Article number | 566780 | |
| Catalog number | 319705 | |
| EAN / GTIN | 4045197673251 | |
| Manufacturer number | 319705 25 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
- Anodised housing of high-tensile aluminium with diamond dust-coated roller bodies.
- Steplessly adjustable from 1 − 70 mm.
- Suitable for round, hexagonal and square material.
- Integral adjustment aid with scales.
- General-purpose cylindrical bar holder.
Advantage:
For quick adjustment to the material diameter.
Application:
Suitable for disc turrets and radial turrets.
Supplied with:

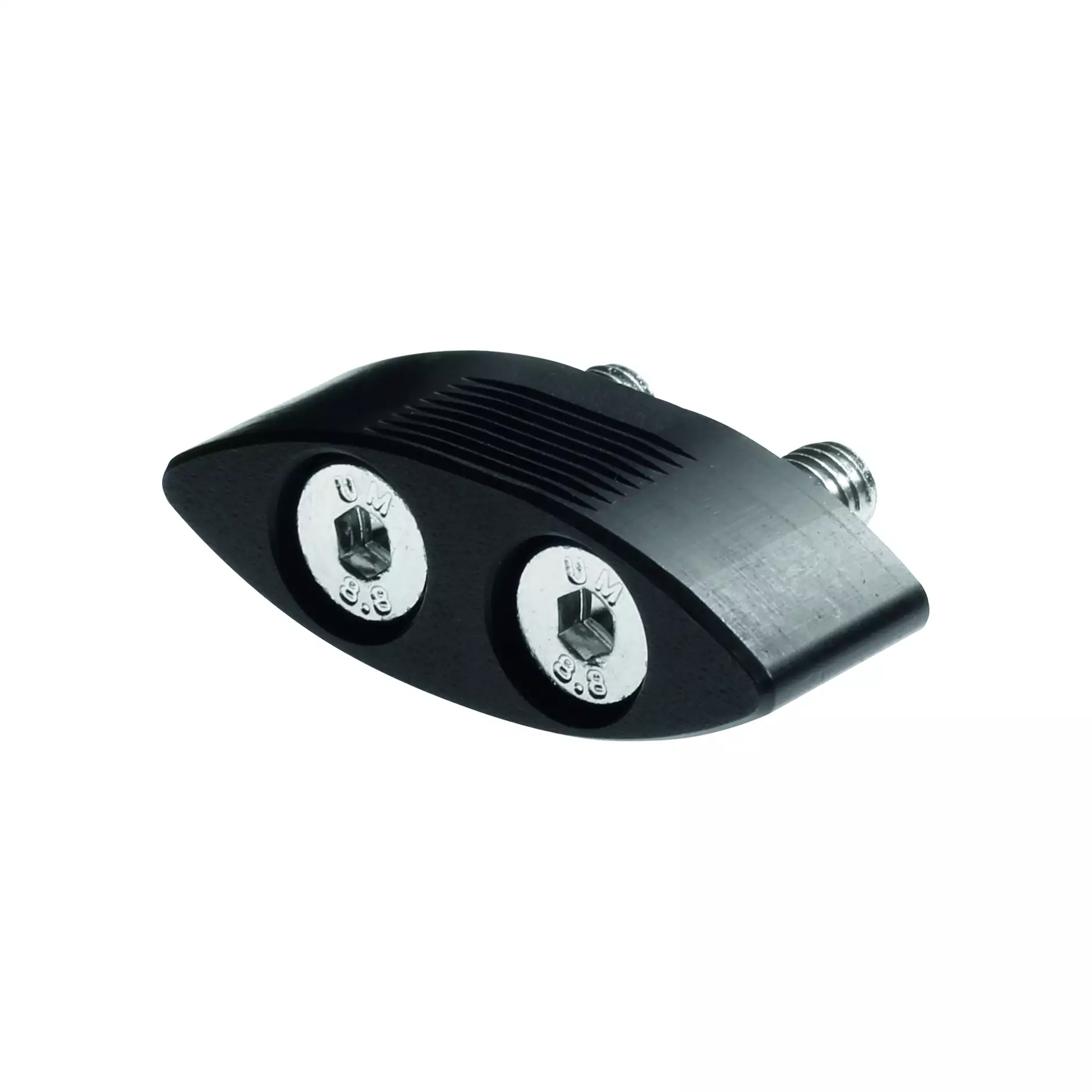

Bar gripper with roller bodies, interchangeable jaws and L-wrench for hexagon socket screws for changing the roller bodies and interchangeable jaws.
Note:
Suitable VDI adaptor in the spare parts list, see No. 319707 size 20 / 30.
