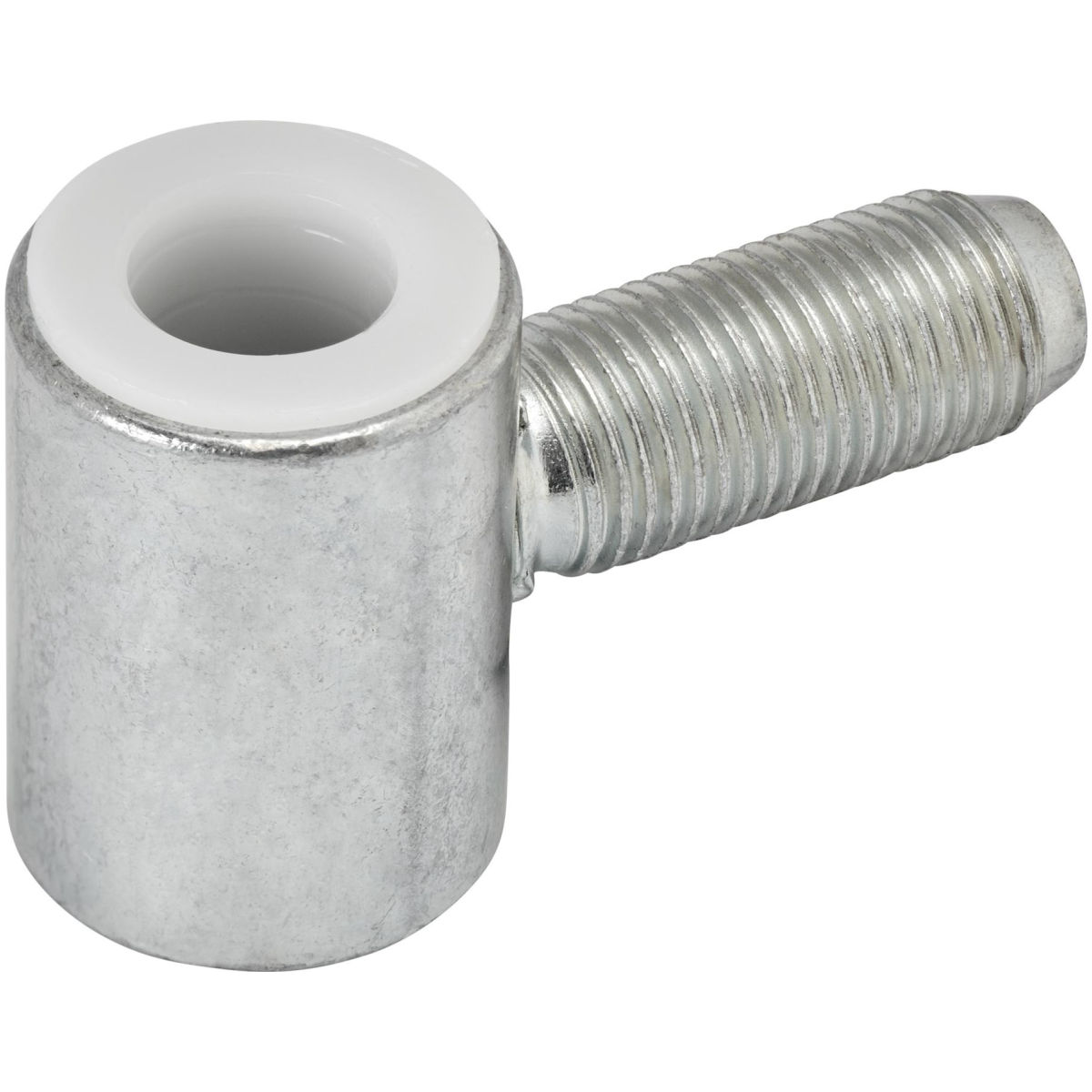

SFS special centre part nickel-plated 18mm not offset M10x1x24
Article no.: 1323457
Catalog no.: 11306
Article code:
Product details
Technical Data
| Stop situation | in steel frame | |
| Height | 26 mm | |
| Band application | Steel frame hinges | |
| Band version | 3-piece | |
| Size | 18 mm | |
| Material | Steel | |
| Version | nicht versetzt | |
| Thread | MF10x1x24 | |
| Surface | nickel-plated | |
| Band type | Drill-in tapes standard type B/C/H; Steel frame hinges | |
| concealed | no |
Identification & Classification
| Article number | 1323457 | |
| Catalog number | 11306 | |
| EAN / GTIN | 7613168512259 | |
| Manufacturer number | 511141 |
Description
Description:
with hostaform plain bearing
Special centre parts solve your assembly problems.
Tolerances in frame or door production can be levelled out with offset threaded bolts in the height (axial) or sideways (radial).
If the frame is intended for a 16 or 18 mm hinge, you can also use a 22 mm hinge thanks to an MF10x1 centre part.
Other versions can be produced on request.
Special centre parts solve your assembly problems.
Tolerances in frame or door production can be levelled out with offset threaded bolts in the height (axial) or sideways (radial).
If the frame is intended for a 16 or 18 mm hinge, you can also use a 22 mm hinge thanks to an MF10x1 centre part.
Other versions can be produced on request.
