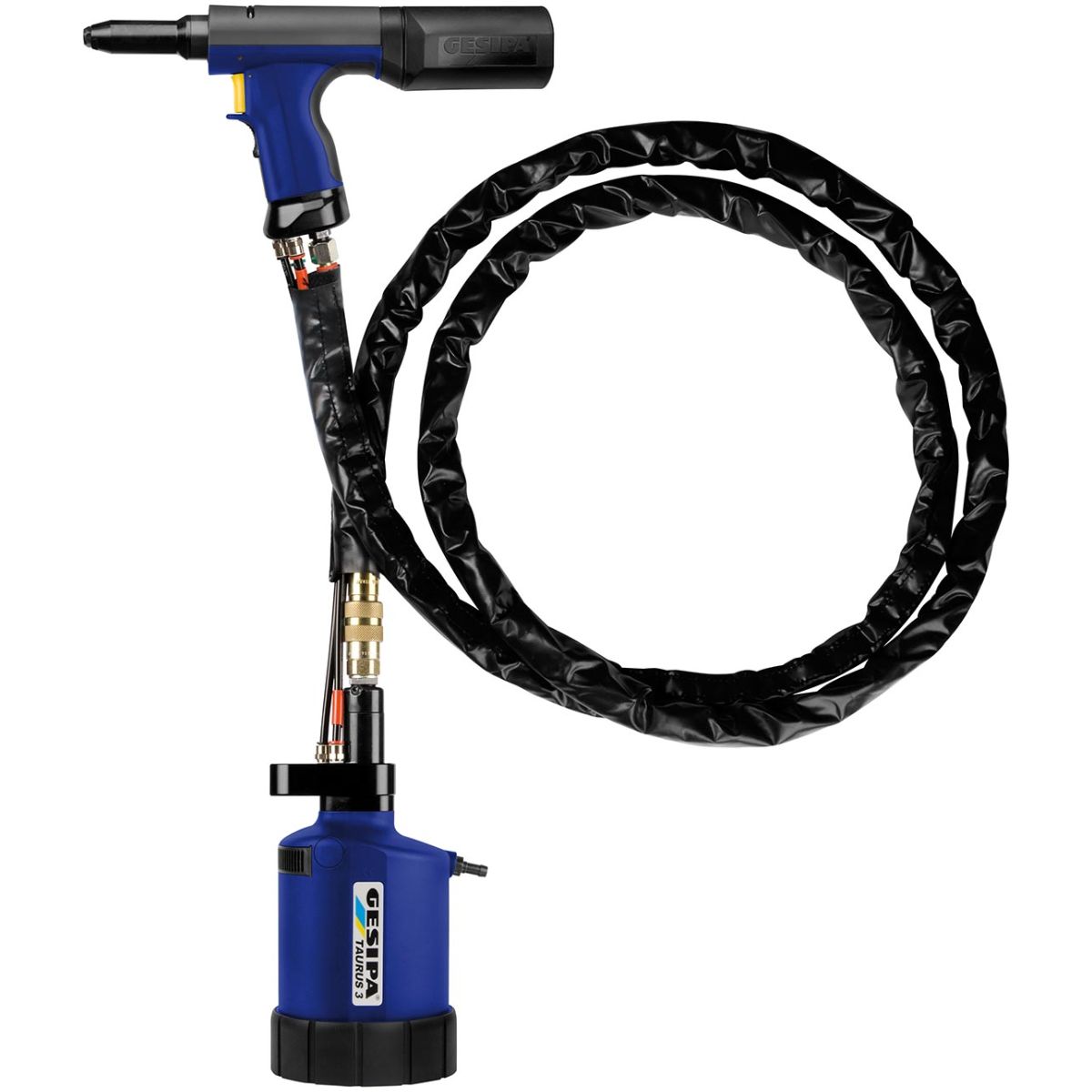

GESIPA Blindniet-Setzgerät Taurex 1

Design:
The entire Taurex series with external intensifier, for even more flexibility, versatility and ergonomics, low weight of the riveting gun. Hose connection with quick coupling: disconnect the gun from the external intensifier without oil loss and without venting, ideal for processing blind rivets and lockbolts in hard-to-reach places, also ideal for installation in assembly tables, fixtures or semi-automated workstations, can be fitted with almost all additional equipment from the TAURUS series: Extension units, rivet mandrel container, blind rivet counter, setting process monitoring, pressure release and remote control.

Working area:Taurex 1Blind rivets up to 4 mm Ø aluminium/steel
Taurex 2 Blind rivets up to 5 mm Ø all materials and 6 mm Ø aluminium/steel
Taurex 3 Blind rivets up to 6.4 mm Ø all materials
Taurex 4 Blind rivets up to 6.4 mm Ø all materials and up to 8 mm Ø aluminium
Taurex 5 Blind rivets over 6.4 mm Ø all materials, lockbolts up to 10 mm Ø with corresponding pulling head modules
Taurex 6 Blind rivets over 6.4 mm Ø all materials, lockbolts up to 10 mm Ø with corresponding pulling head modules

Scope of delivery:
Each device contains: 1 bottle of hydraulic oil 100 ml, 1 oil refill container, operating instructions with spare parts list.

Taurex 1 mouthpieces 17/18, 17/20, 17/22, assembly spanner SW12/14, SW14/17
Taurex 2 Mouthpieces 17/24, 17/27, 17/29, 17/32, assembly spanner SW12/14, SW14/17
Taurex 3 mouthpieces 17/36, 17/40, 17/45, assembly spanner SW12/14, SW14/17
Taurex 4 mouthpieces 17/36, 17/40, 17/45, assembly spanner SW12/14, SW14/17

Taurex 5 and 6 must be fitted with pulling heads specially adapted to their application. Production takes place on request.
