SFS Bohrschrauben m.Spitze A2 SLG/2-5-S-6,5x20
Article no.: 1468117
Catalog no.: 9732
Article code:
Product details

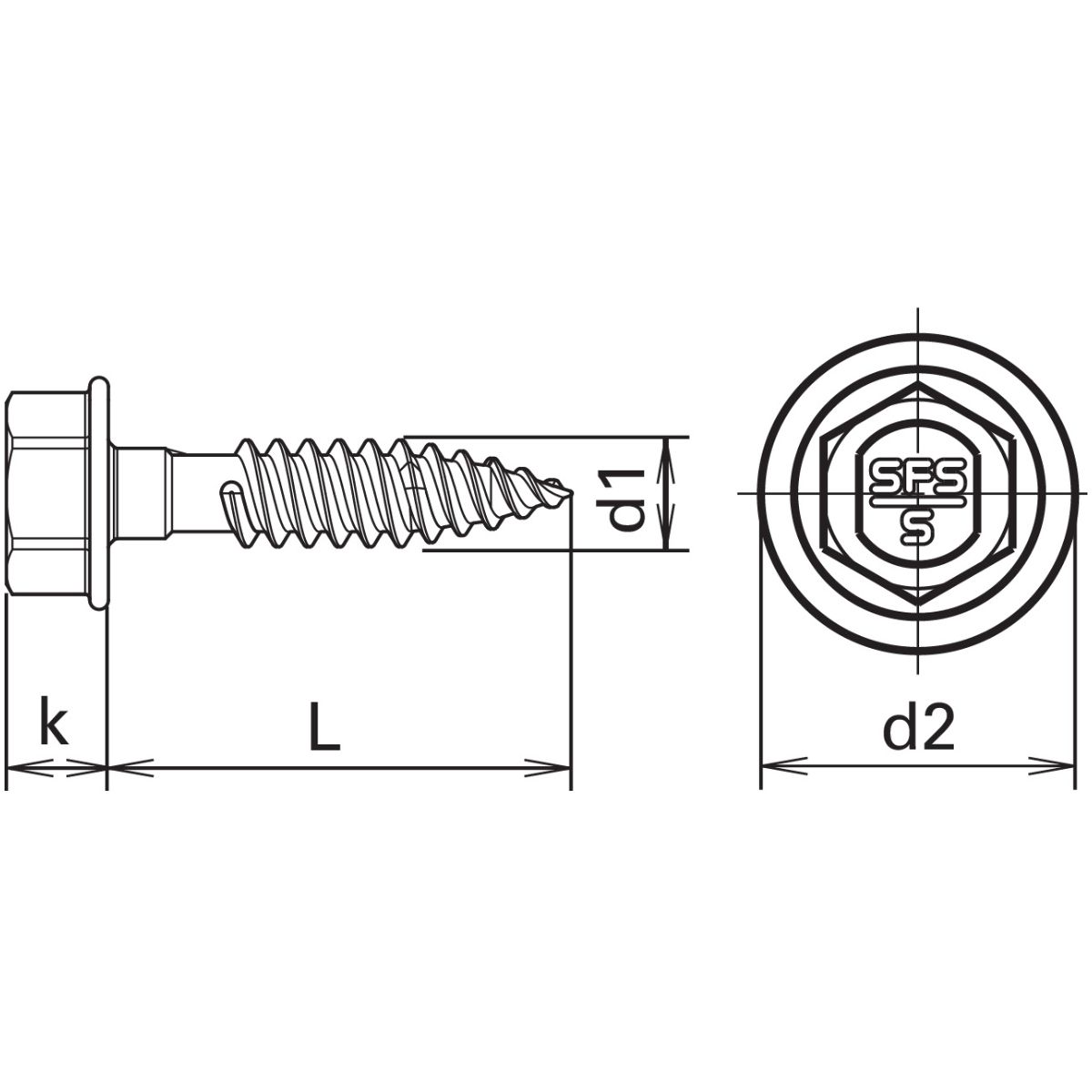

Technical Data
| L | 20 mm | |
| Drive | Hexagon | |
| Material | Stainless steel | |
| Head shape | Hexagonal head | |
| Typ | SLG/2-5-S-6,5X20 | |
| d2 | 12 mm | |
| k | 4.9 mm | |
| d1 | 6.5 mm | |
| Variety | A2 (austenitic stainless steel) |
Identification & Classification
| Article number | 1468117 | |
| Catalog number | 9732 | |
| EAN / GTIN | 7613168796123 | |
| Manufacturer number | 1468117 |
Description
Description:
"For fast and secure direct screwing of profiles to sandwich outer skin. For aesthetic enhancement of sandwich façades, energy optimization of old façades by doubling up. Also for façades, perforated panels, expanded metal or solar systems, panels, pipes, etc.
For overlaps 2x0.4 - 0.88 mm; for add-on parts made of aluminum and steel with t= 1.0-3.0 mm, pre-drilled with Ø 6.5-7.2 mm (without sealing washer); for cover and support plates t= from 0.4-0.88 mm.
Quick:
° slip-free positioning thanks to Speed-Point technology
° quick setting thanks to double thread
° Secure hold in the attack thanks to high hexagon head and large collar
Safe:° secure setting thanks to patented thread-free zone
° resistant to loosening - no loosening due to wind and vibrations
Your benefits:° short installation time - 3 x faster installation than with Bulbtite
° high load values - better values than with Bulbtite
without sealing washers "
For overlaps 2x0.4 - 0.88 mm; for add-on parts made of aluminum and steel with t= 1.0-3.0 mm, pre-drilled with Ø 6.5-7.2 mm (without sealing washer); for cover and support plates t= from 0.4-0.88 mm.
°
° quick setting thanks to double thread
° Secure hold in the attack thanks to high hexagon head and large collar
° resistant to loosening - no loosening due to wind and vibrations
° high load values - better values than with Bulbtite
