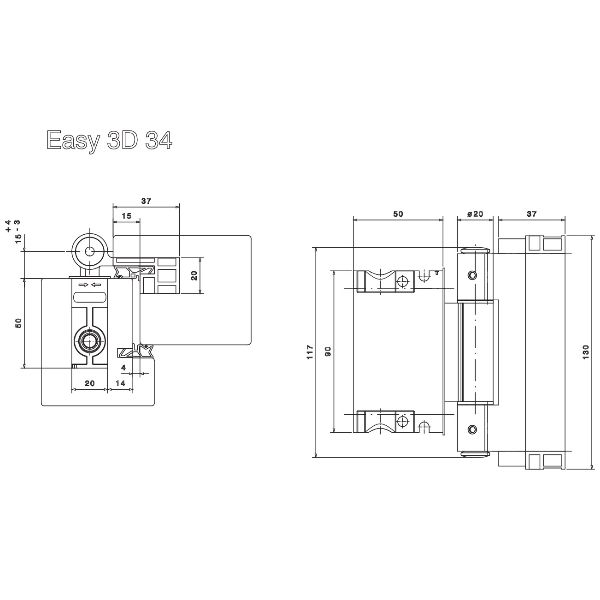

SFS routed-in hinge Easy 3D-034 stainless steel look frame part 50mm

Article no.: 1572253 Catalog no.: 11193
Price per 1 Piece
Net price: CHF 57.10
  • Minimum order quantity 3 Piece
  • Order steps: 3 Piece
on request
In stock
60 pieces in stock

Select article variation and quantity

Price per 1 Piece (incl. VAT)

Add to wishlist

Share this product

or copy this link

Product details

Technical Data

Stop situation pleated; Frame
Band application Milling tapes; Object tapes and receptor elements
Adjustabl yes
Band version 3-piece
Material Aluminium
Surface Stainless steel look
Typ Easy 3D-034 Rahmenteil 50mm
Band type Easy 3D; Object tapes and receptor elements
max. load value with 2 belts 160 kg
concealed no

Identification & Classification

Article number 1572253
Catalog number 11193
EAN / GTIN 7611188003740
Manufacturer number 657770

Description

Description:

  • Wheel diameter 20mm, maintenance-free
  • can be used on the left and right
  • with overlap seal of 7mm overlap air
  • for 15mm overlap
  • standard with pin lock
  • installed with a spanner (SW 4mm)
  • infinitely adjustable

Note:

Can be used in VSSM external doors for RC1 and RC2.

Application Area:

for rebated wooden doors
