DORMA door closer ITS 96 without sliding arm EN 2-4 Axis normal
Article no.: 186973
Catalog no.: 31000
Article code:
Product details
Technical Data
| Closing force | EN 2-4 | |
| Door closer version | mechanical | |
| Number of doors | 1 | |
| Surface | silver | |
| Door width | <1100; <1400 | |
| DIN | left/right | |
| Door width max. | 1,100 mm | |
| Door thickness min. | 40 mm | |
| Door closer type | Slide rail |
Identification & Classification
| Article number | 186973 | |
| Catalog number | 31000 | |
| EAN / GTIN | 4021226254516 | |
| Manufacturer number | 52400150 |
Description
Description:
Max. opening angle (depending on door construction) 120°

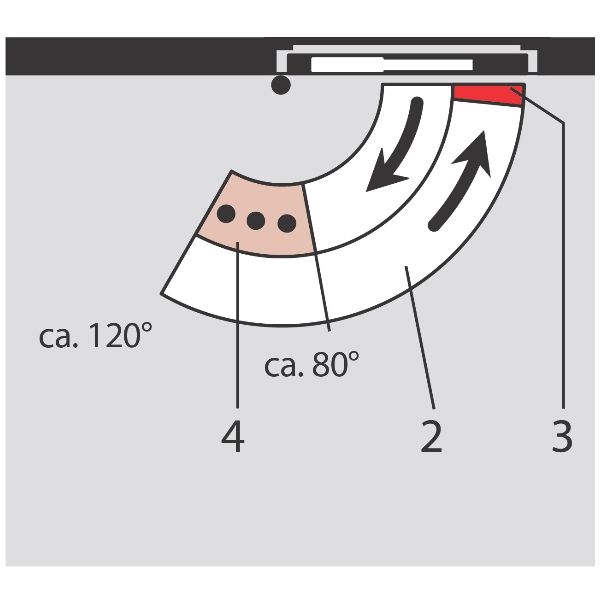

Adjustment options: Closing force, closing speed (2), latching action (3), adjustable opening limit (4) from approx. 80°-120°
Adjustment options: Closing force, closing speed (2), latching action (3), adjustable opening limit (4) from approx. 80°-120°
