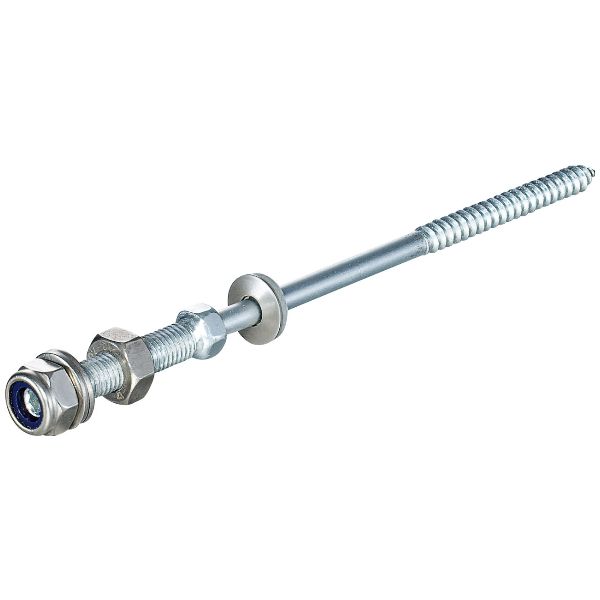

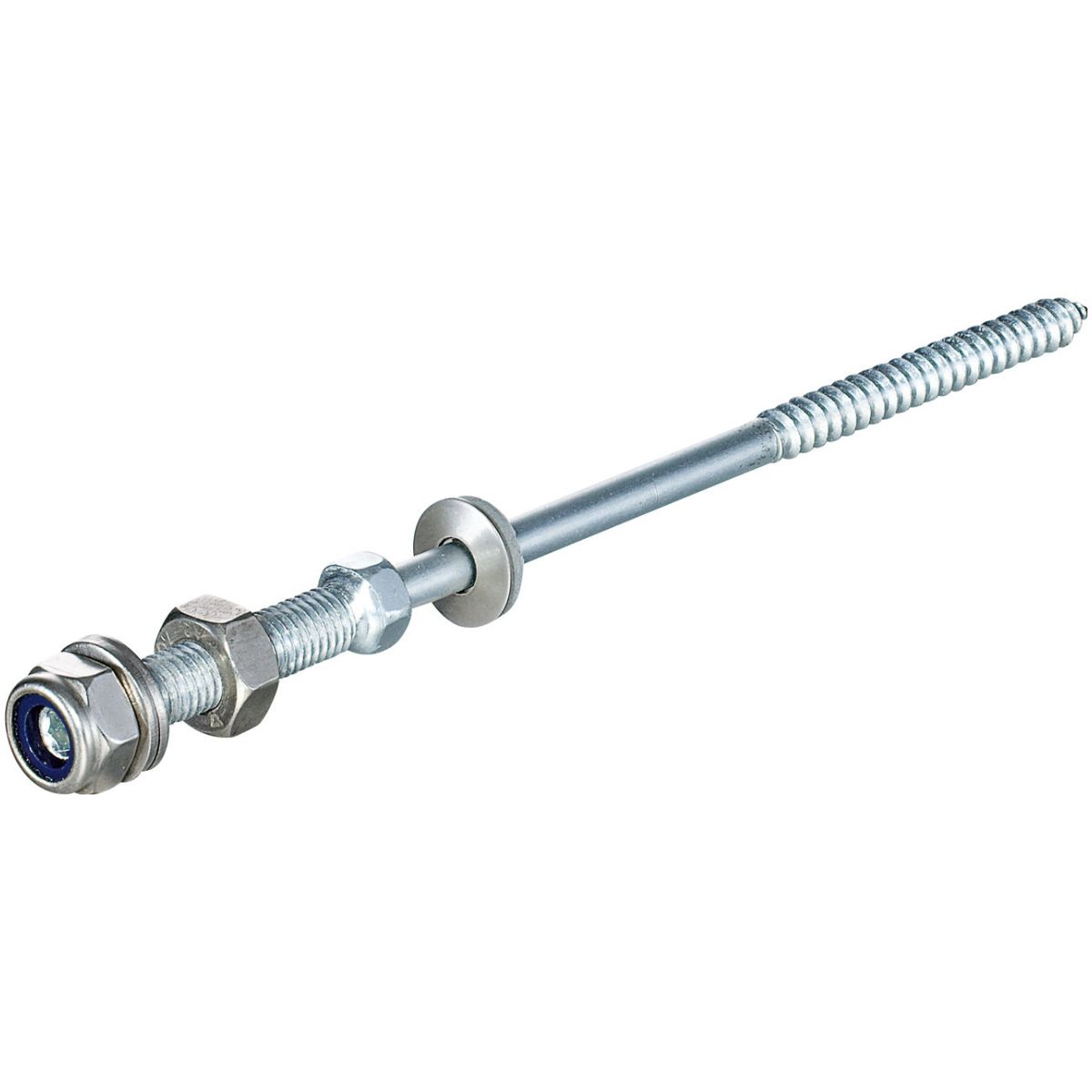

Solarbefestiger Typ A komplett ohne Kalotten A2 8,4x136
Article no.: 201675
Catalog no.: 8150
Article code:
Product details

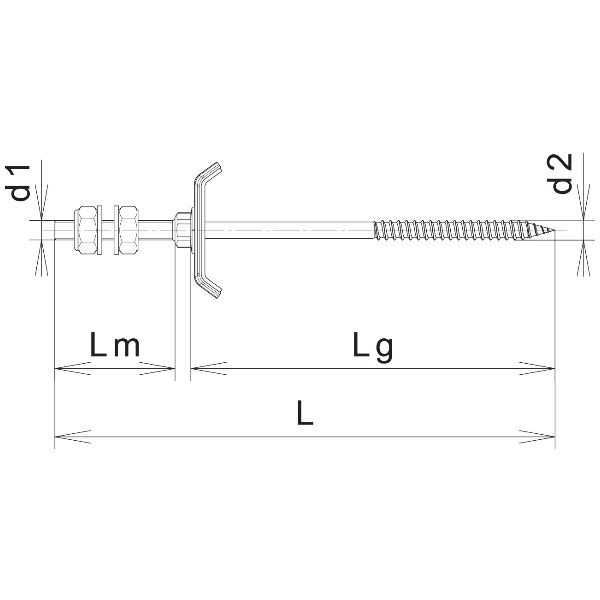

Technical Data
| LM | 50 mm | |
| L | 136 mm | |
| d1 | M10 | |
| Drive | Hexagon socket | |
| LG | 80 mm | |
| Drive number | SW5 | |
| Material | Stainless steel | |
| KL (L1) | 40 mm - 40 mm | |
| Lm | 50 mm | |
| d2 | 8.4 mm | |
| Variety | A2 (austenitic stainless steel) |
Identification & Classification
| Article number | 201675 | |
| Catalog number | 8150 | |
| EAN / GTIN | 4043377255709 | |
| Manufacturer number | 8,4X80/50 DS19 |
Description
Description:
For fastening photovoltaic and solar systems on profiled sheet metal or
sandwich panel roofs with wooden substructure.
The spherical caps must be selected separately depending on the profile type.
(see FN9448 + FN9292)
Technical information:

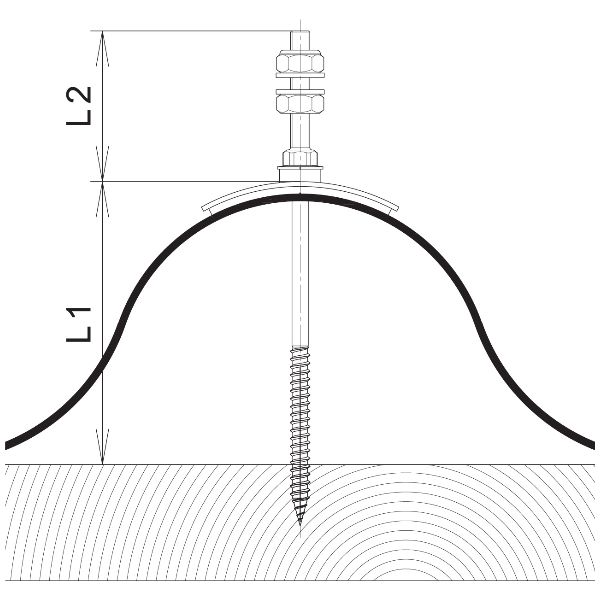

Recommended screw length (Lg) = trapezoidal profile height/sandwich thickness + min. 4 x ø
Pre-drilling diameter in timber substructure = 6mm
The building authority approval must always be observed
for timber substructures
incl. EPDM sealing discs S19
sandwich panel roofs with wooden substructure.
The spherical caps must be selected separately depending on the profile type.
(see FN9448 + FN9292)
Technical information:
Recommended screw length (Lg) = trapezoidal profile height/sandwich thickness + min. 4 x ø
Pre-drilling diameter in timber substructure = 6mm
The building authority approval must always be observed
for timber substructures
incl. EPDM sealing discs S19
