Insulation plug plastic FID II
Article no.: 2033512
Catalog no.: 2827
Article code:
Product details
Technical Data
| With screw | No | |
| Version | senza vite | |
| Suitable for wood | No | |
| Suitable for perforated brick | No | |
| Suitable for calcium silicate brick | No | |
| Suitable for solid brick | No | |
| Material | Plastic | |
| Material grade | Nylon | |
| Building material | ETICS insulating boards | |
| Suitable for hexagon wood screw | Yes | |
| Suitable for natural stone | No | |
| Suitable for aerated concrete | No | |
| Suitable for fastening with cable ties | No | |
| Suitable for plasterboard | No | |
| Colour | light grey | |
| Suitable for concrete | No | |
| Suitable for aerated concrete | No | |
| Chipboard/wood screws | 3,5 - 4,5 mm | |
| With edge | No | |
| Anchor length | 50 mm | |
| Suitable for chipboard | No | |
| Environment | Damp area / Outside | |
| Surface protection | Other | |
| Packing | Folding box | |
| Application | Fixing of lightweight fixtures |
Packaging units
| 1 Pack | 50 Pieces | |
| 1 Pallet | 10400 Pieces |
Identification & Classification
| Article number | 2033512 | |
| Catalog number | 2827 | |
| EAN / GTIN | 4048962504859 | |
| Manufacturer number | 570347 | |
| Article class | RMH |
Description
Description:

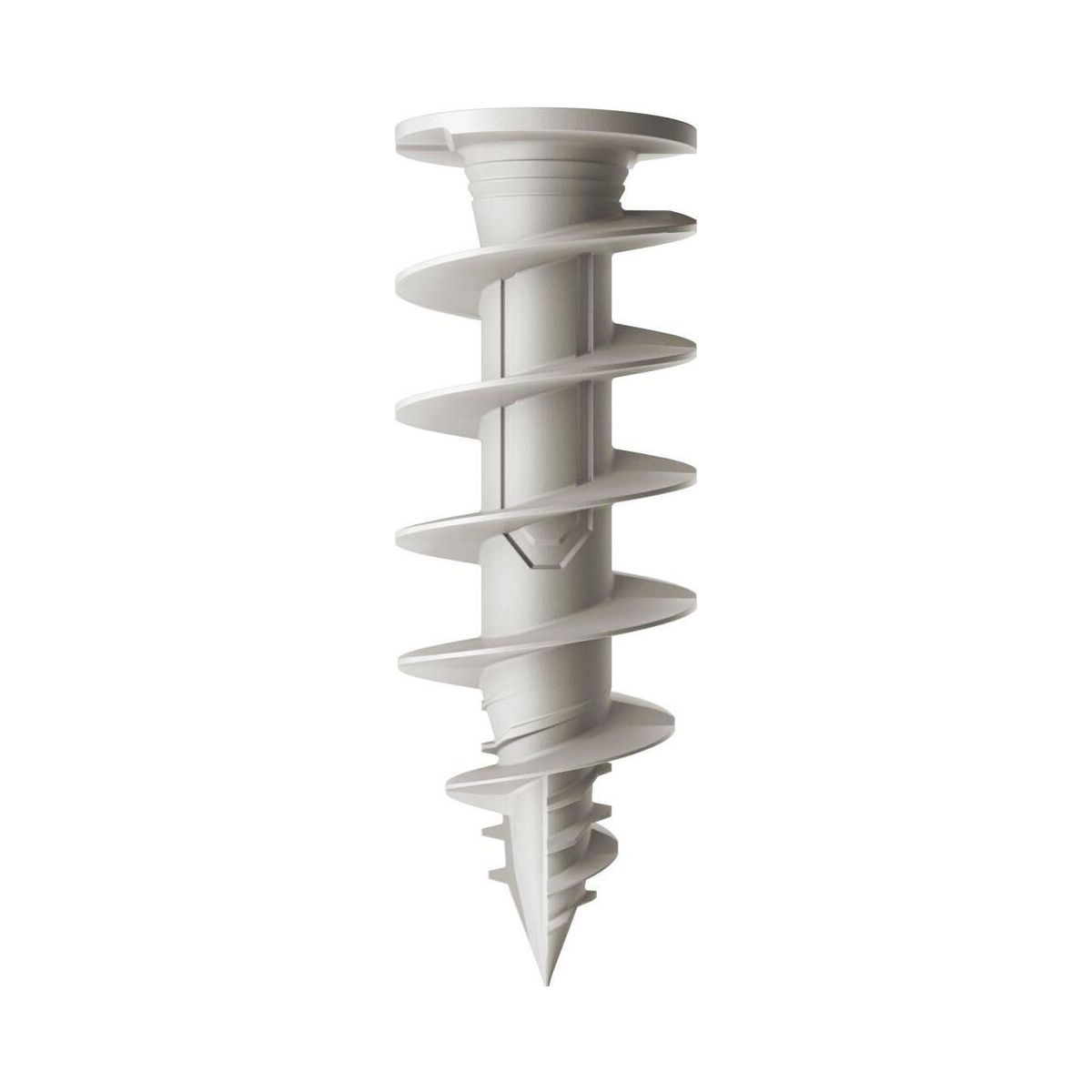

The fischer FID II insulation plug is suitable for fixing lightweight attachments to external thermal insulation composite systems. Thanks to the combined centring, milling and cutting function of the plug tip, the FID II can be screwed in with pinpoint accuracy. The small head diameter in combination with the underhead milling pockets of the plug ensure a perfectly concealed and flush setting pattern. The FID II is particularly suitable for fixing lightweight attachments such as exterior lamps, house numbers or doorbells to ETICS.
Advantage:
- The use of standard screws with a diameter of 3.5 - 4.5 mm allows flexible use.
- Maximum stability due to glass fibre reinforced plastic.
- Due to the minimal head diameter, the plug edge is not visible even with narrow attachments.
- Due to the special tip geometry, the plug screws through plaster thicknesses of up to 10 mm without pre-drilling, which enables a fast processing.
- The FID II is easily set with a standard TX40 bit.
- The fischer insulation plug enables an universal use in all common insulation materials.
Supplied with:
50 x Insulation fixing FID II
Application Area:
- Mineral wool
- Expanded polystyrene (EPS)
- Extruded polystyrene (XPS)
- Wood fibre
- Polyurethane rigid foam (PU)
- Outdoor lighting
- Motion detector
- House number
- Doorbell
Application Notes:
- The FID II is placed in the ETICS with a cordless screwdriver.
- For thick layers of plaster pre-drilling is recommended.
- The insulation plug anchors itself firmly in the insulation material without destroying the plaster.
- After successful pre-assembly, the FID II can be additionally sealed with a sealing compound.
