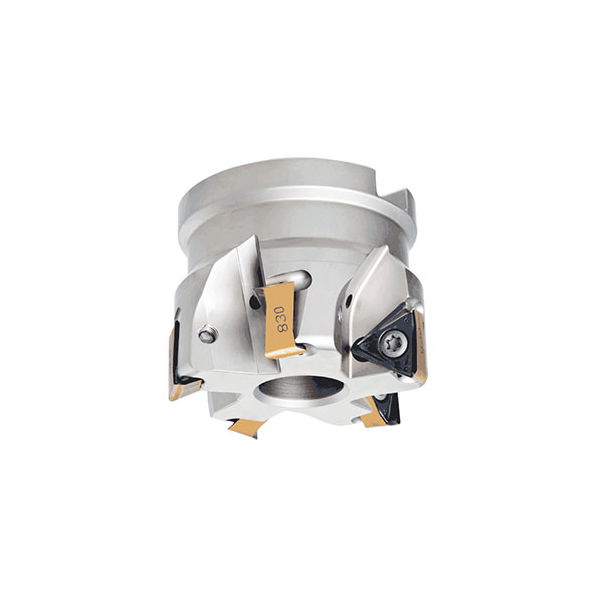

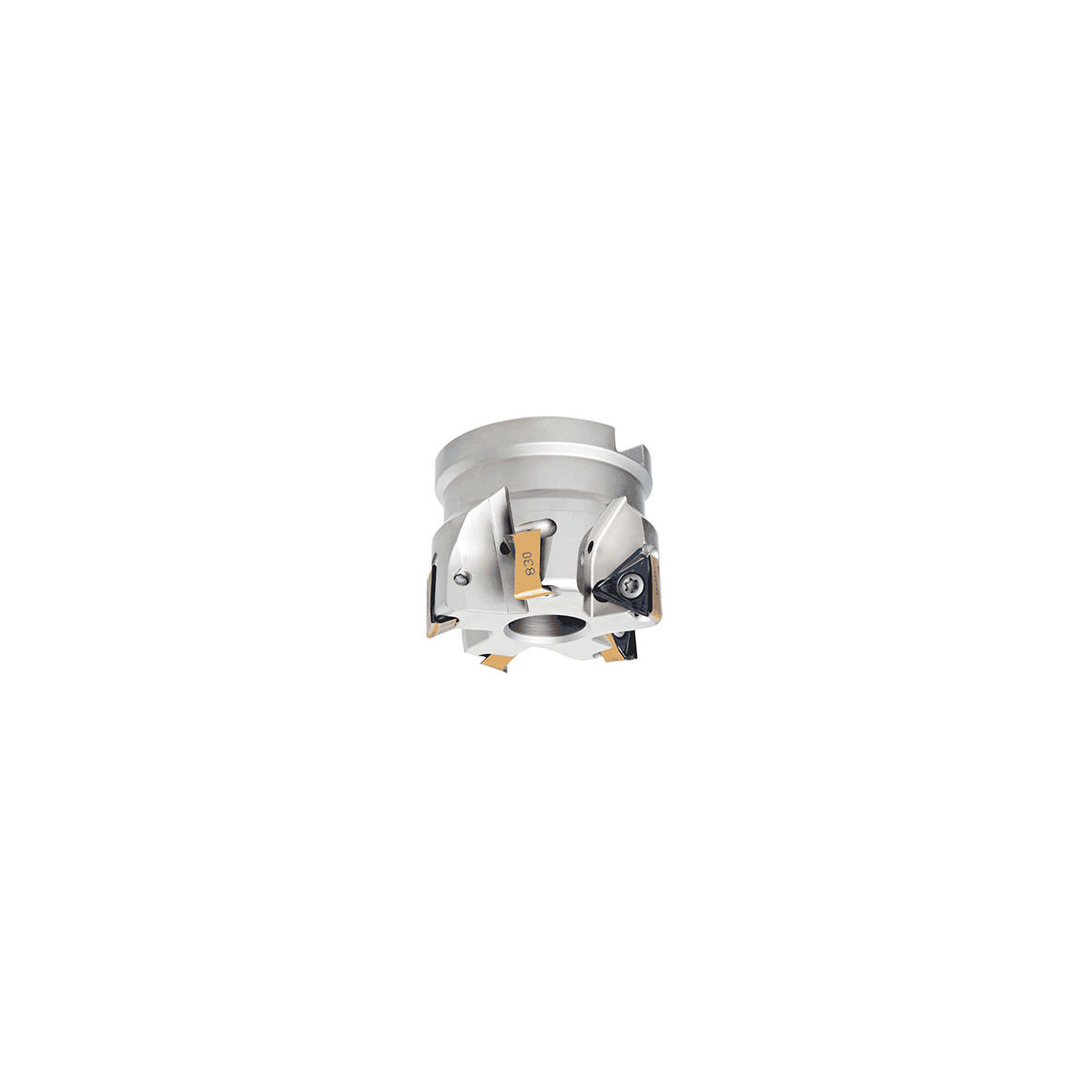

H690 F90AX D040-5-16-10 90° Face Mills Carrying H690 TNKX 1005 Triangular Inserts with 6 Helical Cutting Edges
Article no.: 2048741
Catalog no.: L23980 1080
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Series | HELIDO 690 | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 2048741 | |
| Catalog number | L23980 1080 | |
| EAN / GTIN | 7291075353648 | |
| Manufacturer number | 3106655 |
Description
Description:
Indexable Face Mills, Connection Diameter Machine Side (DCONMS) 16 mm, Cutting Diameter (DC/DCX) 40 mm, Cutting Item Count (CICT) 5, Hub Diameter (DHUB) 38 mm, Overall Length (OAL) 40 mm
Feature:
- Arbor Style A
- Connection Diameter Machine Side (DCONMS) 16 mm
- Coolant Supply Property (CSP) Coolant Thru
- Cutting Diameter (DC) 40 mm
- Cutting Diameter (DC/DCX) 40 mm
- Cutting Direction (HAND) Right Hand
- Cutting Item Count (CICT) 5
- Depth of Cut Maximum (APMX) 8 mm
- Hub Diameter (DHUB) 38 mm
- Master Insert Identification (MIID) H690 TNKX 100504PNTR
- Overall Length (OAL) 40 mm
- Tool Cutting Edge Angle (KAPR) 90 Degrees
