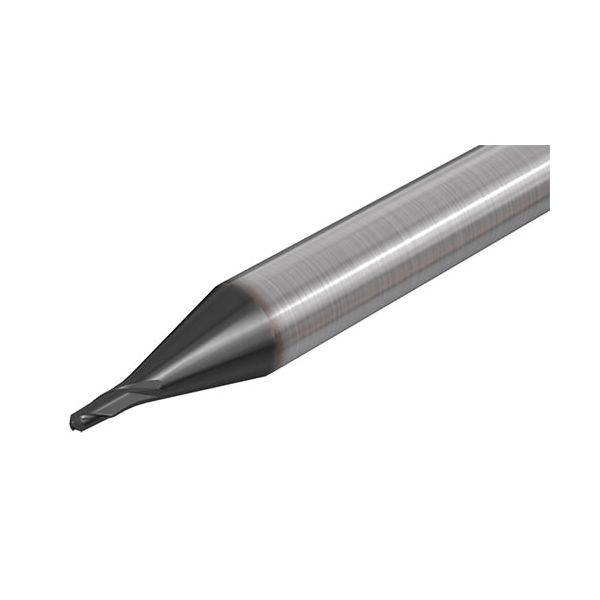

EB-A2 14-14/28C14H110 IC903 2 Flute, 30° Helix Stub Cut Length Ball Nose Solid Carbide Endmills for Materials up to 55-70 HRC
Article no.: 2053826
Catalog no.: L24180 2498
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Identification & Classification
| Article number | 2053826 | |
| Catalog number | L24180 2498 | |
| EAN / GTIN | 7291075421651 | |
| Manufacturer number | 5650083 |
Description
Description:
Ballnose End Mills, Connection Diameter Machine Side (DCONMS) 14 mm, Cutting Diameter (DC) 14 mm, Depth of Cut Maximum (APMX) 14 mm, Flute Count (NOF) 2, Overall Length (OAL) 110 mm
Feature:
- Connection Code Machine Side (CCMS) Cylindrical
- Connection Diameter Machine Side (DCONMS) 14 mm
- Corner Radius (RE) 7 mm
- Cutting Diameter (DC) 14 mm
- Depth of Cut Maximum (APMX) 14 mm
- Flute Count (NOF) 2
- Flute Helix Angle (FHA) 30 Degrees
- Neck Diameter (DN) 13.8 mm
- Overall Length (OAL) 110 mm
- Shank Type Round
- Usable Length (LU) 28 mm
