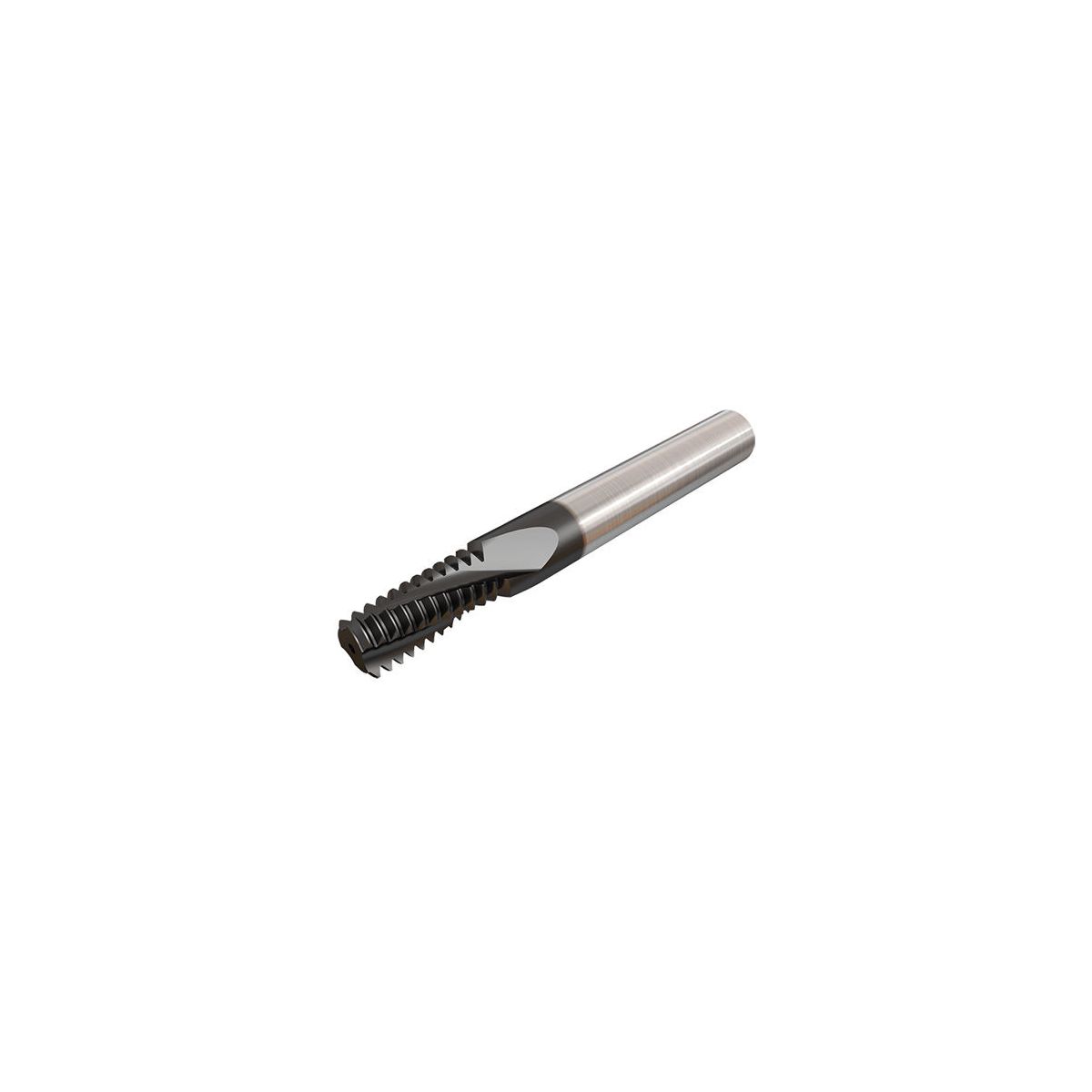

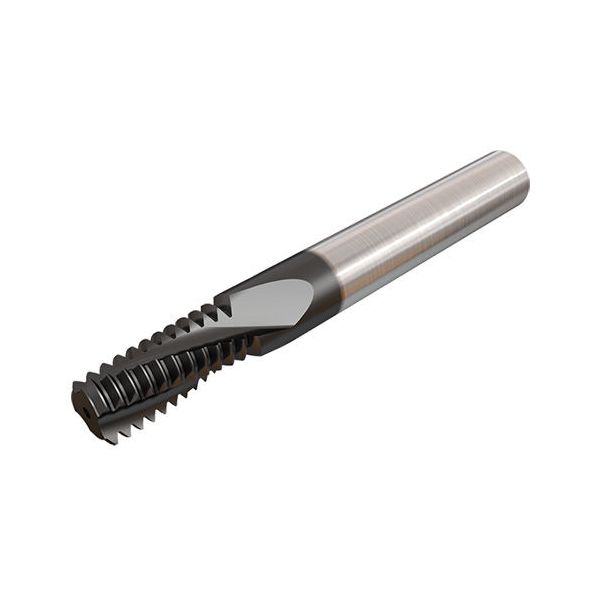

MTECB 08078C24 1.5ISO IC908 Solid Carbide Internal Threading Endmills with Coolant Hole for ISO Thread Profile
Article no.: 2060781
Catalog no.: L24210 10
Article code:
- Thread profile: Teilprofil
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Thread profile | Teilprofil | |
| Series | SOLIDTHREAD | |
| Type of product | thread milling cutter |
Identification & Classification
| Article number | 2060781 | |
| Catalog number | L24210 10 | |
| EAN / GTIN | 7291075197761 | |
| Manufacturer number | 5605046 |
Description
Description:

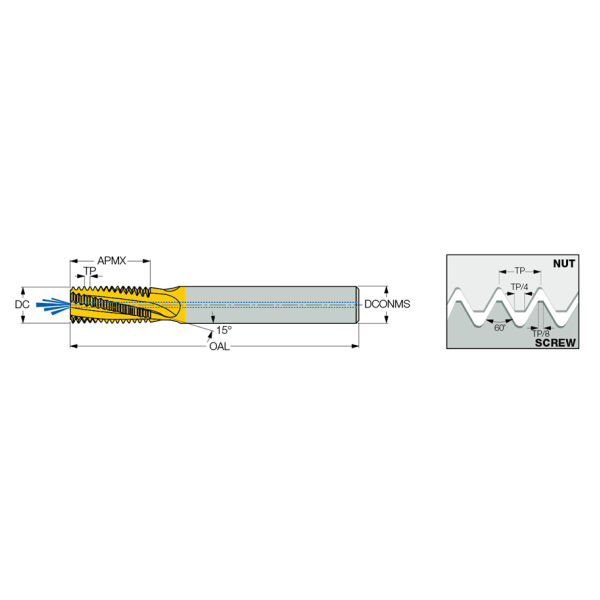

Solid Threading Mills, Connection Diameter Machine Side (DCONMS) 8 mm, Cutting Diameter (DC) 7.8 mm, Overall Length (OAL) 76 mm, Thread Pitch (TP) 1.5 mm
Feature:
- Connection Code Machine Side (CCMS) Cylindrical
- Connection Diameter Machine Side (DCONMS) 8 mm
- Coolant Supply Property (CSP) Coolant Thru
- Cutting Diameter (DC) 7.8 mm
- Depth of Cut Maximum (APMX) 24.8 mm
- Flute Count (NOF) 3
- Flute Helix Angle (FHA) 15 Degrees
- Overall Length (OAL) 76 mm
- Shank Type Round
- Thread Form Type (THFT) M60
- Thread Pitch (TP) 1.5 mm
- Usable Length (LU) 24.8 mm
