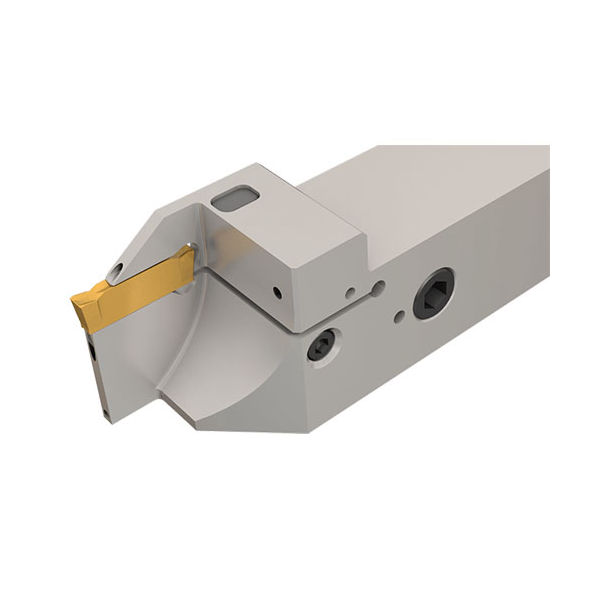

DGTR 16B-2D35-JHP-SL Parting and Grooving Side Lock Type Tools with High-Pressure Coolant for CNC and Swiss Automatics
Article no.: 2079929
Catalog no.: L23920 1155
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Series | DO-GRIP Twisted 2-Sided | |
| Type of product | Clamp toolholder |
Identification & Classification
| Article number | 2079929 | |
| Catalog number | L23920 1155 | |
| EAN / GTIN | 7291075344202 | |
| Manufacturer number | 2393674 |
Description
Description:

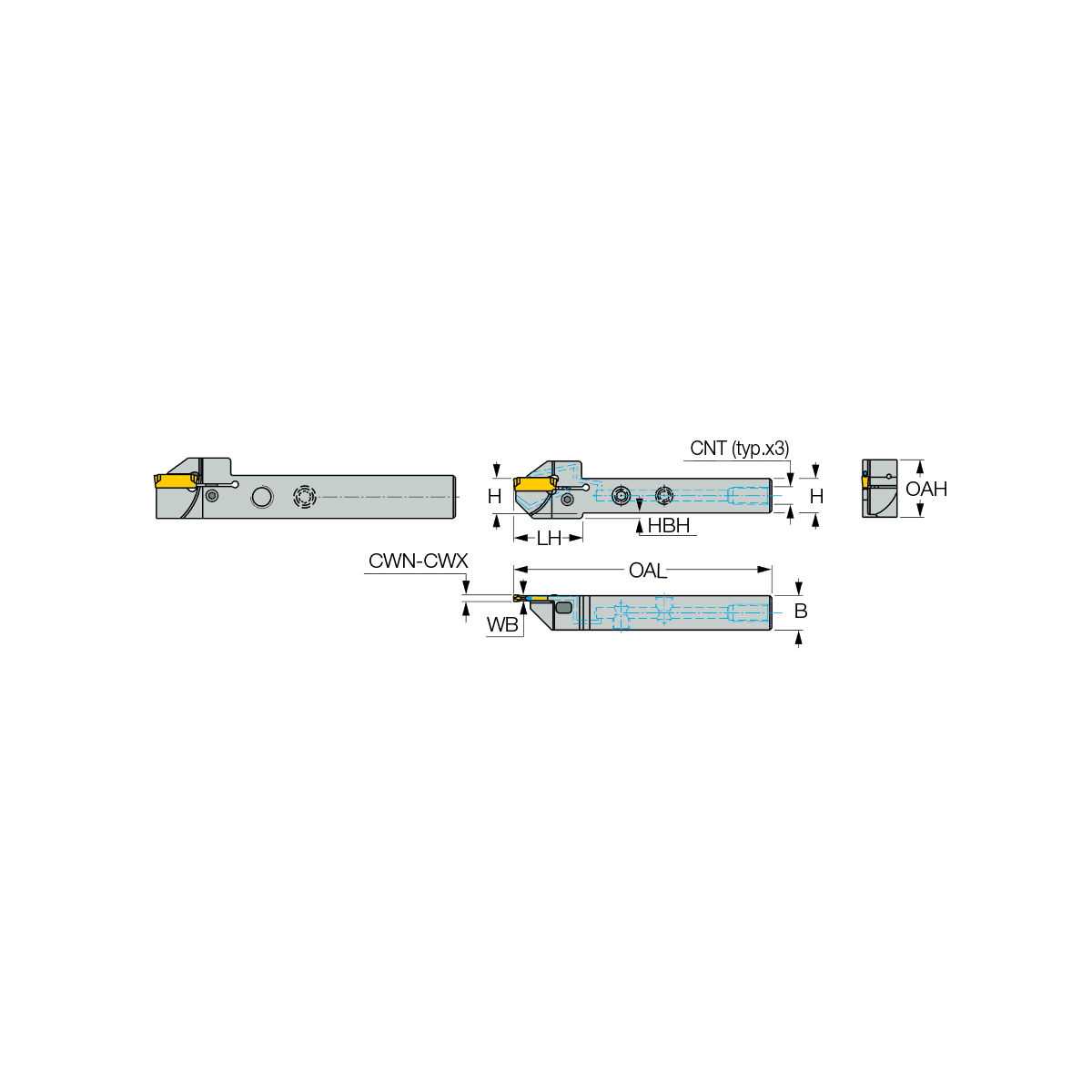

Parting Off Indexable Holders, Cutting Width Maximum (CWX) 2.5 mm, Cutting Width Minimum (CWN) 1.9 mm, Overall Height (OAH) 26.7 mm, Overall Length (OAL) 120 mm
Feature:
- Body Width (WB) 1.7 mm
- Cutting Direction (HAND) Right Hand
- Cutting Width Maximum (CWX) 2.5 mm
- Cutting Width Minimum (CWN) 1.9 mm
- Head Length (LH) 32 mm
- Overall Height (OAH) 26.7 mm
- Overall Length (OAL) 120 mm
- Shank Height (H) 16 mm
- Shank Width (B) 16 mm
- Work Piece Parting Diameter Maximum (CUTDIA) 35 mm
