PCHR 16-D40-3-JHP Grooving and Parting Tools with Channels for High-Pressure Coolant Carrying Inserts with 5 Cutting Edges
Article no.: 2080998
Catalog no.: L23920 1225
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Series | PENTAIQGRIP | |
| Type of product | Clamp toolholder |
Identification & Classification
| Article number | 2080998 | |
| Catalog number | L23920 1225 | |
| EAN / GTIN | 7291075362251 | |
| Manufacturer number | 3304716 |
Description
Description:

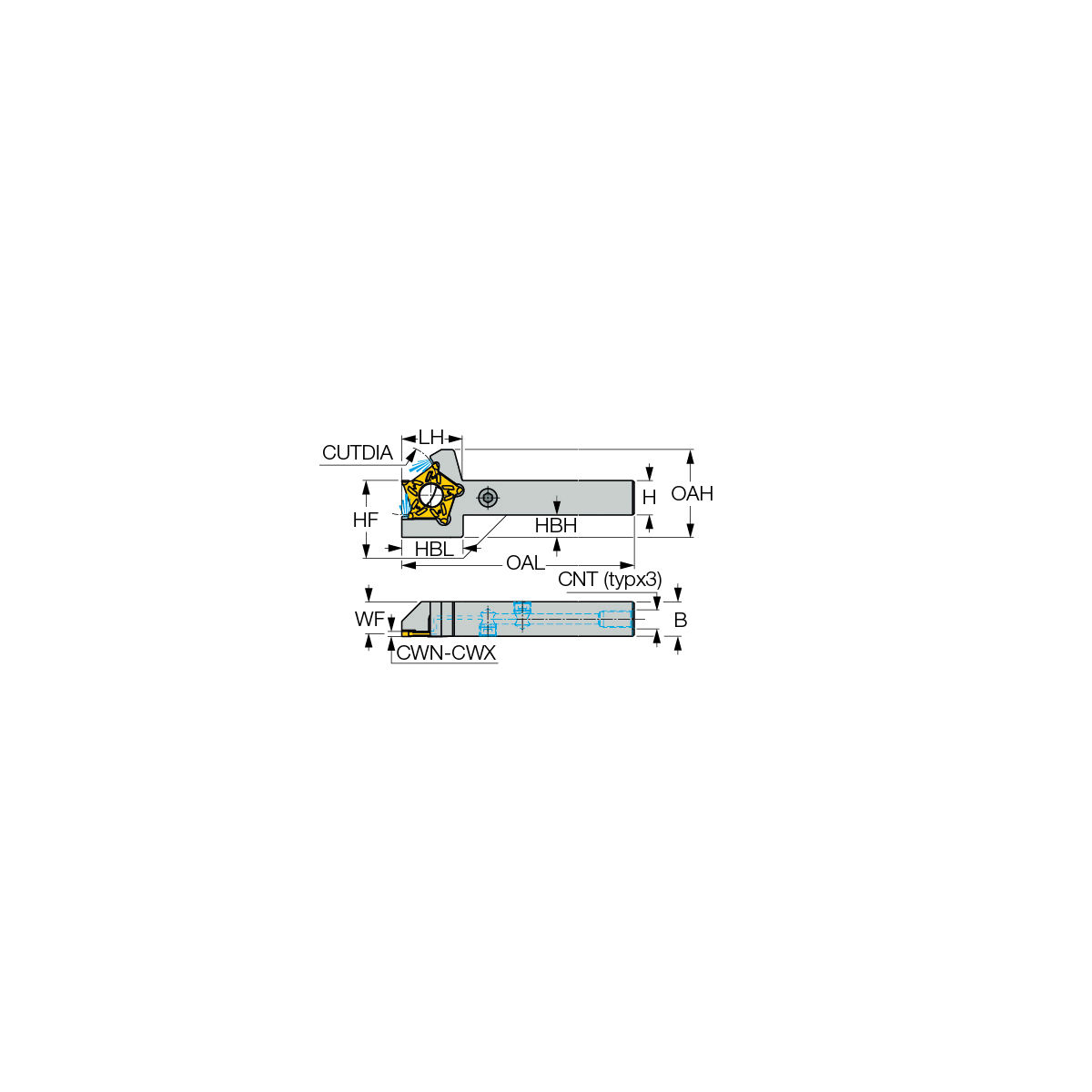

Parting Off Indexable Holders, Cutting Width Maximum (CWX) 3.2 mm, Cutting Width Minimum (CWN) 3 mm, Overall Height (OAH) 51 mm, Overall Length (OAL) 135 mm
Feature:
- Cutting Direction (HAND) Right Hand
- Cutting Width Maximum (CWX) 3.2 mm
- Cutting Width Minimum (CWN) 3 mm
- Head Length (LH) 36.3 mm
- Overall Height (OAH) 51 mm
- Overall Length (OAL) 135 mm
- Shank Height (H) 16 mm
- Shank Width (B) 16 mm
- Work Piece Parting Diameter Maximum (CUTDIA) 40 mm
