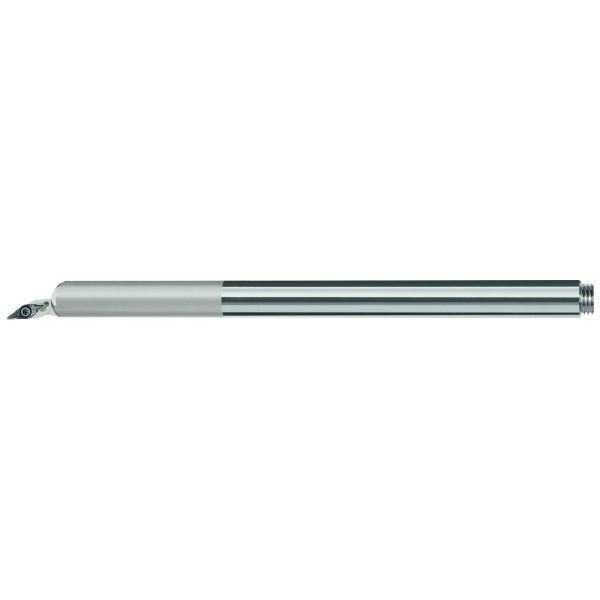

Master Mute boring bar A.. SVJCR 142°, for indexable inserts VC.., right
Article no.: 2160446
Catalog no.: 265038
Article code:
Product details
Technical Data
| Through-coolant | yes | |
| Entry of cooling lubricant | with cooling lubricant entry, axially concentric | |
| Escape of cooling lubricant | with cooling lubricant exit, radial | |
| Cooling lubricant | yes | |
| Series | Master Mute | |
| Manufacturer’s designation | A.. SVJCR 142° | |
| Interface position | on the machine | |
| Holder type | plain shank | |
| Shank diameter DS | 12 mm | |
| Shank form | round | |
| Diameter of shaft Ds | 12 mm | |
| Head shape | round | |
| Hole diameter min. D1 | 14 mm | |
| Centre-line offset L3 | 7 mm | |
| Setting angle κ | 142 degrees | |
| Vibration damping | yes | |
| Machining method | internal turning | |
| ISO code toolholder | A12X SVJCR/L07 | |
| Type of fastening for insert | S (with counterbore screwed through hole) | |
| Insert designation | VC.. 0702.. | |
| Interface | joint 1 | |
| Gauge length A | 132 mm | |
| Overall length L | 189 mm | |
| Cutting direction | right-hand cutting | |
| Standard | Werksnorm | |
| Type of product | boring Bar |
Identification & Classification
| Article number | 2160446 | |
| Catalog number | 265038 | |
| EAN / GTIN | 4069515036252 | |
| Manufacturer number | 265038 12/07 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:
Carbide-reinforced round shank without clamping face.
Note:
Use only with internal cooling (temperature resistance of up to max. 100°C).
