Spring plunger with internal hexagon / stainless steel, standard spring load M16
Article no.: 390168
Catalog no.: Z370610
Article code:
Product details
Technical Data
| Material no. | 1.4305 | |
| Drive | Hexagon socket | |
| SW | 5 mm | |
| d1 | M16 | |
| Spring force F1 | 45 N | |
| Material | Stainless steel | |
| Spring force F2 | 100 N | |
| t | 2.5 mm | |
| l | 32 mm | |
| s | 5 mm | |
| d2 | 7.5 mm | |
| n | 3.2 mm |
Identification & Classification
| Article number | 390168 | |
| Catalog number | Z370610 | |
| EAN / GTIN | 4030618202066 | |
| Manufacturer number | 22060.0416 |
Description
Version:

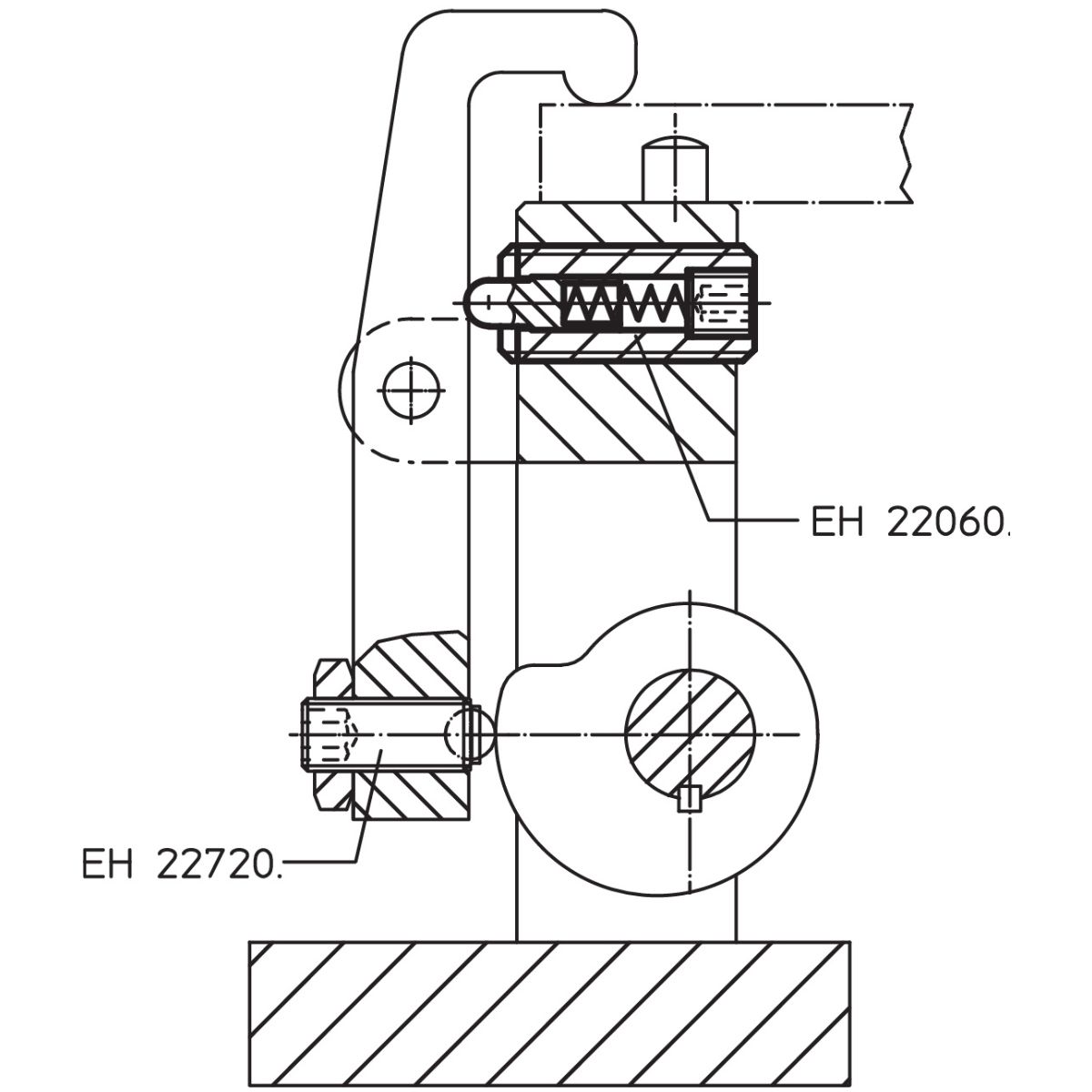

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Description:
- Pin: Stainless steel 1.435
- Body: Stainless steel 1.435
- Spring: Stainless steel
Spring plungers can be mounted and removed by means of the slot or internal hexagon.
Please use a special assembly tool for mounting with a slot (pin side).
Standard spring load: no marking
Note:
Special types on request.
Spring range and forces are precisely tested.
Thread lock on request, please refer to appendix - Technical Data -
Spring range and forces are precisely tested.
Thread lock on request, please refer to appendix - Technical Data -
