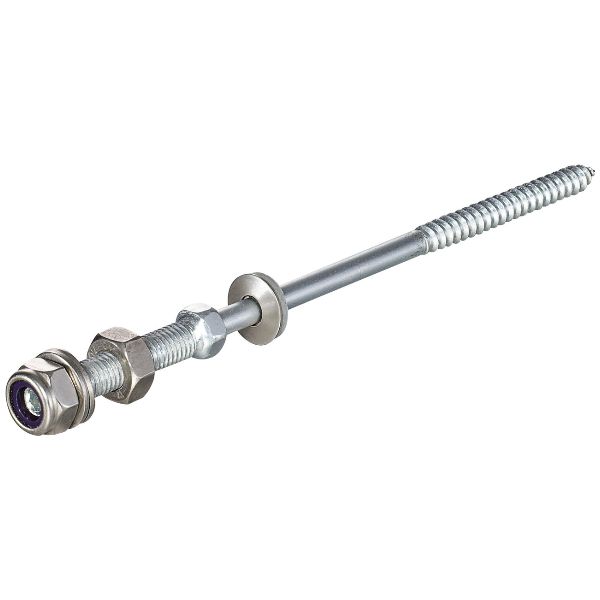

Solarbefestiger Typ BZ komplett ohne Kalotten A2 8x136
Article no.: 494684
Catalog no.: 8152
Article code:
Product details
Technical Data

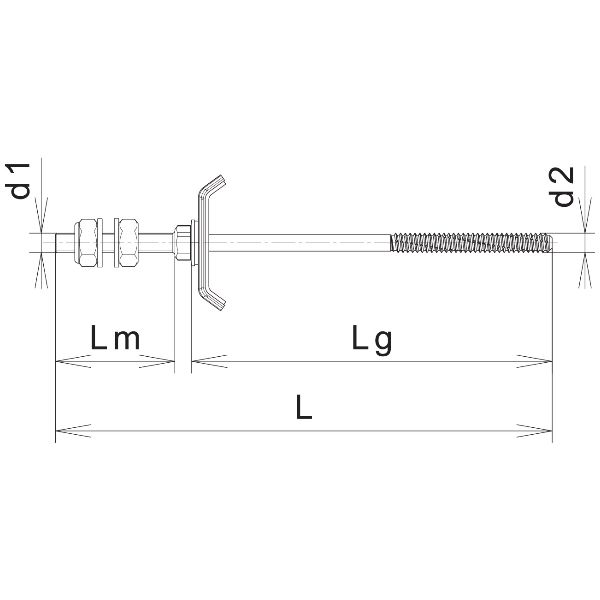

| LM | 50 mm | |
| L | 136 mm | |
| d1 | M10 | |
| Drive | Hexagon socket | |
| LG | 80 mm | |
| Drive number | SW5 | |
| Material | Stainless steel | |
| KL (L1) | 15 mm - 60 mm | |
| Lm | 50 mm | |
| d2 | 8 mm | |
| d1 | 8 mm | |
| Variety | A2 (austenitic stainless steel) |
Identification & Classification
| Article number | 494684 | |
| Catalog number | 8152 | |
| EAN / GTIN | 4043377255587 | |
| Manufacturer number | 8X80/50 DS19 |
Description
Description:
For fastening photovoltaic and solar systems
on profiled sheet or sandwich panel roofs with steel substructure.
The spherical caps must be selected separately depending on the profile type (see FN9448 + FN9292)
Technical information:
Recommended screw length (Lg) = trapezoidal profile height/sandwich thickness + 20mm
The building authority approval must always be observed.
Pre-drilling table for substructures:
Steel thickness Pre-drilling Ø
1.5-5 mm 6.8 mm
6.0 mm 7.0 mm
8.0 mm 7.2 mm
>10 mm 7.4 mm
for steel substructures
incl. EPDM sealing discs S19
on profiled sheet or sandwich panel roofs with steel substructure.
The spherical caps must be selected separately depending on the profile type (see FN9448 + FN9292)
Technical information:
Recommended screw length (Lg) = trapezoidal profile height/sandwich thickness + 20mm
The building authority approval must always be observed.
Pre-drilling table for substructures:
Steel thickness Pre-drilling Ø
1.5-5 mm 6.8 mm
6.0 mm 7.0 mm
8.0 mm 7.2 mm
>10 mm 7.4 mm
for steel substructures
incl. EPDM sealing discs S19
