Nutensteine m. Führungssteg u.Kugel Alu/A2 M 8
Article no.: 494909
Catalog no.: 8200
Article code:
Product details

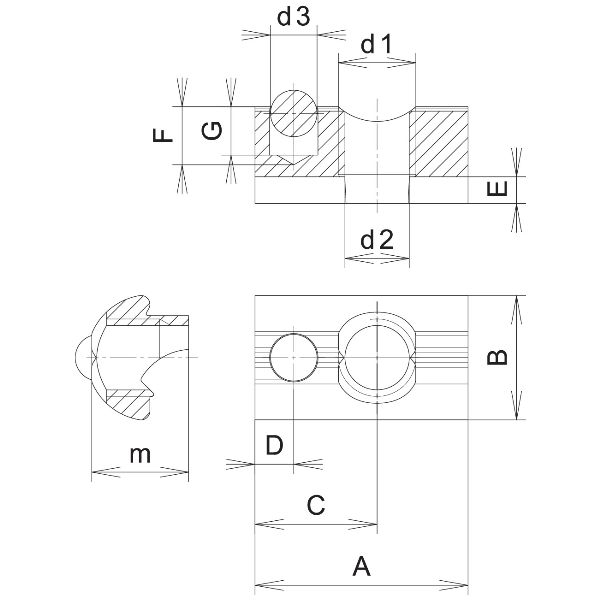

Technical Data
| A | 22 mm | |
| F | 5 mm | |
| m | 10 mm | |
| C | 13 mm | |
| d2 | M8 | |
| B | 13 mm | |
| d3 | 5 mm | |
| E | 4 mm - 4 mm | |
| D | 5 mm | |
| G | 7 | |
| d1 | 9.5 mm |
Identification & Classification
| Article number | 494909 | |
| Catalog number | 8200 | |
| EAN / GTIN | 4043377228963 | |
| Manufacturer number | 903708 |
Description
Description:
with guide bar and spring ball
Stone: Aluminium
Ball: A2 1.3541, spring: A2 1.4310
Stone: Aluminium
Ball: A2 1.3541, spring: A2 1.4310
