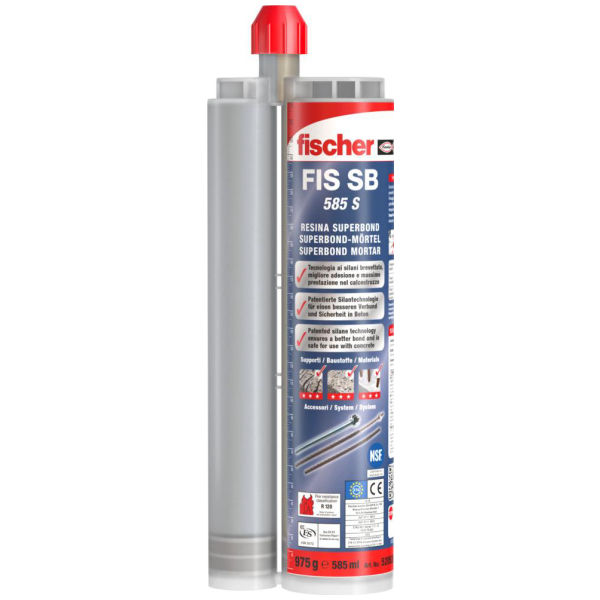

Injection mortar FIS SB 585 S
Article no.: 529702
Catalog no.: 4872
Article code:
Product details
Technical Data
| Professional / DIY | Profi | |
| Fire protection tested | Yes | |
| Application conditions | Fire classification | |
| Durability | 12 mo | |
| Building material | cracked concrete | |
| Base material (bonded mortar) | Vinylester resin | |
| Packing | Cartridge | |
| Scale elements | 270 | |
| Packaging type (bonded mortar) | Injection system | |
| Content | 585 ml | |
| Test marks / approvals | Fire classification |
Packaging units
| 1 Carton | 6 Pieces | |
| 1 Pallet | 432 Pieces |
Identification & Classification
| Article number | 529702 | |
| Catalog number | 4872 | |
| EAN / GTIN | 4048962169089 | |
| Manufacturer number | 520526 | |
| Article class | RMB |
Description
Advantage:
- The injection mortar FIS SB achieves a really high load level thanks to its bond strength.
- Variable anchorage depths from 4x to 20x the threaded rod diameter enable perfect adaptation in line with the load to be applied, thus ensuring an optimised installation time and use of materials.
- Top application temperatures of up to +150°C open up new usage areas for bonded anchors.
- The processing of the mortar is even approved down to a chilly –15°C.
- In combination with the internal threaded anchor RG M I, this product enables surface-flush removal and the reuse of the fixing point. This provides top flexibility.
- The standard threaded rod FIS A can be set for light dynamic loads with the mortar injection system FIS SB in the sizes M12 and M16 in steel grade 8.8 or in the sizes M12, M16, M20 and M24 in stainless steel R and the fischer filling set.
Supplied with:
1 x Cartridge 585 ml
2 x Static mixer FIS UMR
2 x Static mixer FIS UMR
Application Area:
- Heavy steel constructions
- Silo installations
- Tall shelving
- Sound barriers
- Guard rails
- Staircases
- Suspensions of pipes, cable trays and suspended ceilings
- Temporary fixings, e.g. for machines
- Scaffold anchoring
Approved for anchorings in:
- Concrete C20/25 to C50/60, cracked and non-cracked
- Natural stone with dense structure
Application Notes:
- The injection mortar FIS SB is based on a vinyl ester hybrid with silane technology. It is suitable for pre-positioned and push-through installation and can be used with the threaded rod FIS A or the internal threaded anchor RG MI.
- Resin and hardener are stored in two separate chambers and are not mixed and activated until dispensed through the injection cartridge.
- The mortar is extruded bubble free from the drill hole base.
- The mortar bonds the entire surface of the anchor with the drill hole wall and seals the drill hole.
- With push-through installations, the annular gap between the threaded rod and fixture is filled with the injection mortar FIS SB.
