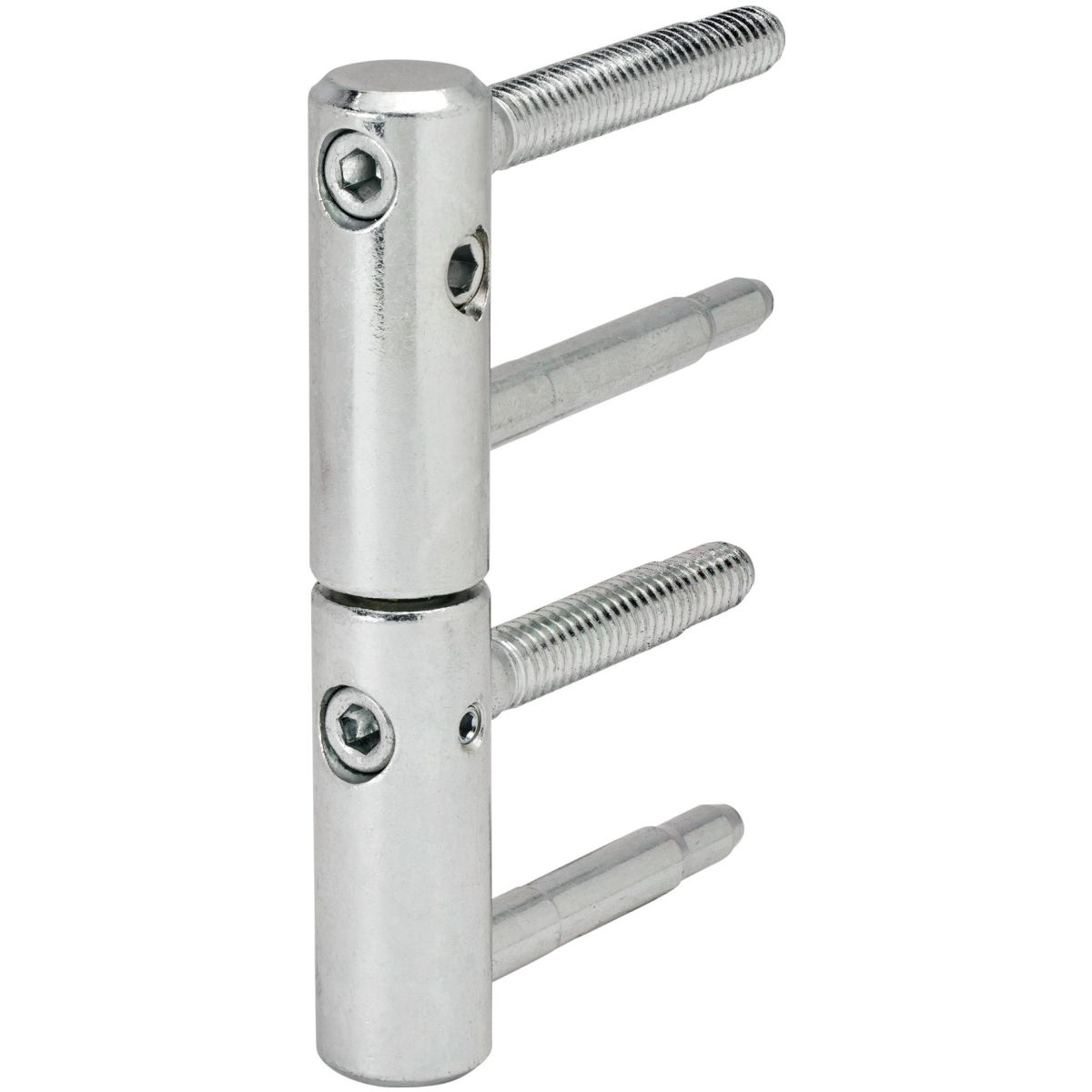

SFS drill-in hinge 11R 20x112mm 65/55mm zinc-plated GSS
Article no.: 706705
Catalog no.: 11199
Article code:
Product details
Technical Data
| Bolt top/bottom | 65/55 mm | |
| Stop situation | Frame | |
| Orig.-Nr. | 20X112-000 | |
| Band application | Window tapes; Drill-in tapes | |
| Adjustabl | yes | |
| Band version | 2-piece | |
| Material | Steel | |
| Surface | galvanized GSS | |
| Band type | 3D Drill-in tapes 11R/12R | |
| max. load value with 2 belts | 80 kg | |
| concealed | no |
Identification & Classification
| Article number | 706705 | |
| Catalog number | 11199 | |
| EAN / GTIN | 7611188764252 | |
| Manufacturer number | 627292 |
Description
Description:
- 3-dimensionally adjustable hinges, maintenance-free
- with stepped threaded bolt
- Height, depth and lateral adjustment
- with safety catch
- threaded pin for safety catch M5x6mm
- installed infinitely adjustable with an Allen key SW 5
- Sash weight max. 120kg (3 hinges) / 80kg (2 hinges)
- for sash width 1000mm
Application Area:
for rebated wooden doors
